터널을 위한 FCC IP65 SUS304 방수 콜 스테이션 전화

기본 정보
원래 장소: 센즈헨, 중국
브랜드 이름: J&R
인증: CE, FCC, RoHS, ISO9001
모델 번호: JR306-SC
최소 주문 수량: 1개 세트
가격: US$279-US$399
포장 세부 사항: 진주 면, 판지
배달 시간: 2-5 작업 일
지불 조건: L/C (신용장), 전신환, 웨스턴 유니온
공급 능력: 달 당 3000 세트
상세 정보
재료: 냉각 압연된 강철 색: 황색 (선택 다른 사람)
보증: 2년이요 날씨 보호: IP65
단추: 스테인레스 강 핸즈프리:
저항하는 파괴자: 단위 규모: 301 *180 *120 (mm)
하이 라이트:

SUS304 방수 콜 스테이션 Telephon

,

IP65 방수 콜 스테이션 텔레폰

,

FCC 터널 아날로그 통화실


제품 설명



Product Description

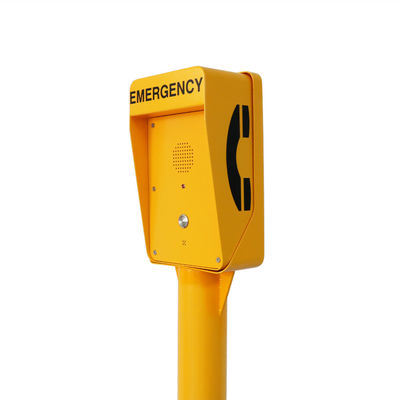

Analogue Emergency SOS Waterproof Call Station Telephone for Tunnel


Call Box suitable for Highway side use, other than that, it is often used at University And College Campuses, Streets, Public Square, Car-Parks, Police Stations, Outside Buildings, Shopping Malls, Industrial Areas And Remote Areas.

The cable entrance is on the back of the phone to prevent from artificial damage, while the keypad is Weather And Vandal Resistant.



Casing Material SUS304 Stainless steel panel and CRS body
Handset Material No handset
Keypad No Keypad
Hook Switch No hook switch
Push Button Stainless steel push button
Temperature

Operating: -30°C to +65°C

Storing: -40°C to +75°C

Weather Resistance IP65 for faceplate
Ringing Tone Shrill warble tone 80 dBA at 1 metre typical
M.T.B.F. Calculated to have an M.T.B.F. in excess of 50,000 hours using
Weight Up to 3 kg depending on option





터널을 위한 FCC IP65 SUS304 방수 콜 스테이션 전화 0





Technical Specification

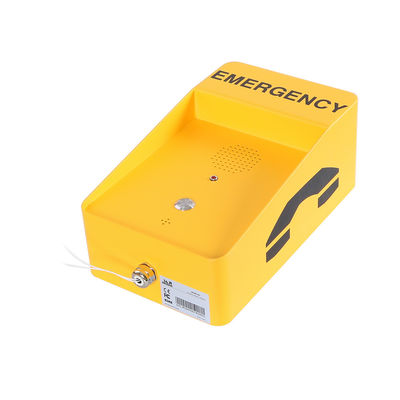

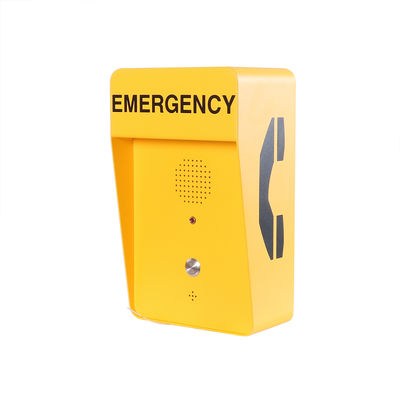

Analogue Emergency SOS Waterproof Call Station Telephone for Tunnel


터널을 위한 FCC IP65 SUS304 방수 콜 스테이션 전화 1

터널을 위한 FCC IP65 SUS304 방수 콜 스테이션 전화 2

  Analogue Version
Power Supply From the analogue telephone network
Supply Voltage 24 VDC to 65 VDC
Supply Current 20 mA DC to 100 mA DC
Ringer Volume - 80dB(A) at a distance of 1 m
- 110dB(A) at a distance of 1 m (for external horn speaker)
Dialing Method DTMF mode in accordance with ITU-T recommendation Q.23.



  SIP Version
Power Supply PoE or 12V DC
Power Consumption -Idle:1.5W
-Active:1.8W
SIP Protocol SIP 2.0 (RFC3261)
Support Codec G.711 A/U, G.722 8000/16000, G.723, G.729
Communication Type Full duplex
Ringer Volume - 90~95dB(A) at a distance of 1 m
- 110dB(A) at a distance of 1 m (for external horn speaker)



  Ambient conditions
Protection Type IP 66 as per EN60529
Operating Temperature -25°C to +70°C
Storage Temperature -25°C to +85°C









Features

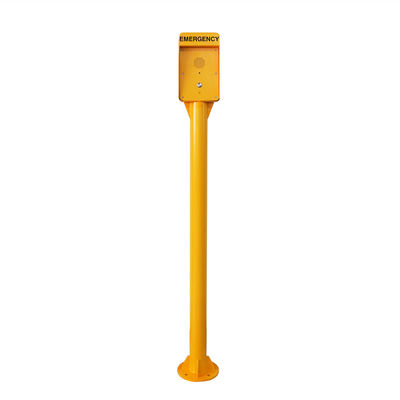

Analogue Emergency SOS Waterproof Call Station Telephone for Tunnel




터널을 위한 FCC IP65 SUS304 방수 콜 스테이션 전화 3



        Robust housing, constructed of cold rolled steel

        Vandal resistant metal button

        Hands free operation
        Hands free operation

        Single or Dual button autodial options with remote programming







Packing & Delivery

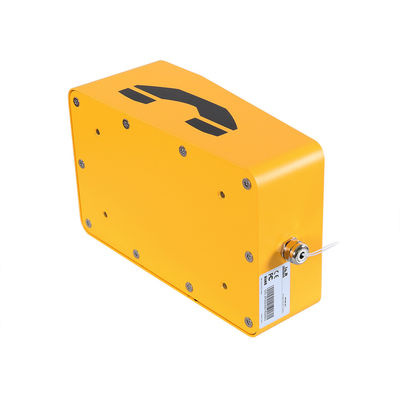

Analogue Emergency SOS Waterproof Call Station Telephone for Tunnel




터널을 위한 FCC IP65 SUS304 방수 콜 스테이션 전화 4



Unit Size 339 *146 *126 (mm)
Carton Size 200*300*440 (mm)
Packaging Materials Pearl cotton, carton
Net Weight 5 KG
Gross Weight 6 KG



터널을 위한 FCC IP65 SUS304 방수 콜 스테이션 전화 5



Port Shenzhen, Guangdong

Lead Time

(If you finish the payment today, your order will ship out within the delivery date.)

Quantity(Sets) 1 2-500 >500
Est. Time(Days) 2 25 To be negotiated









Our Services

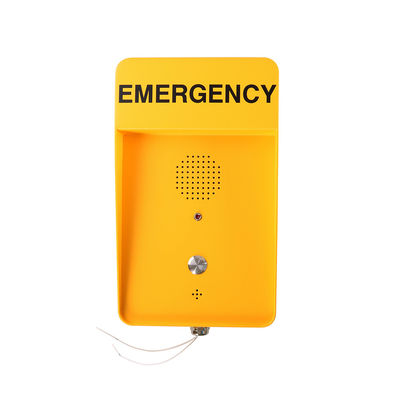

Analogue Emergency SOS Waterproof Call Station Telephone for Tunnel


터널을 위한 FCC IP65 SUS304 방수 콜 스테이션 전화 6



      ODM & OEM products or solutions



      Sample order is greatly welcomed



      We will reply your inquiry within 12 hours



     ░ Update the productive process and show the packing details



      After delivered the goods, we will track the products for you once every two days, until you get the products.



      When you got the products, if there is any further questions, welcome to contact us and we will solve the problems for you in time.







Our Company

Analogue Emergency SOS Waterproof Call Station Telephone for Tunnel


J&R is China based design and manufacturer of rugged communications equipment. Our telephones and systems work, and last, in environments where regular products wouldn’t.

(All Of Our Phone Model Avaliable For Analogue Version,IP/SIP Versio,GSM/3G/4G Version)
After well study your information,we sincerely hope to enter into partnership with your esteemed compnay.and we hope to serve you and cooperate with you for all of our product range in your market.
We could offer you all of our product range with ODM&OEM solution to meet your demands and requirement well.



터널을 위한 FCC IP65 SUS304 방수 콜 스테이션 전화 7





FAQ

Analogue Emergency SOS Waterproof Call Station Telephone for Tunnel


  Q: Do you have any MOQ limit?

  A: Low MOQ, 1pc is available



  Q: Can I have a sample order ?
  A: Yes, we welcome sample order to test and check quality.Mixed samples are acceptable.



  Q: What about the lead time?
  A: Normally within 2-5 working days. We have materials in stock for most of hot selling products.And mass production time needs 2-4 weeks for order quantity more than 100 units.



  Q: What’s the quality standard of your products?

  A: CE, FCC, RoHS, ISO9001:2015 certification approved. All materials are in high grade and new. With the strict quality,every phone be thoroughly tested before leaving the factory.



  Q: Is it OK to print my logo on the products?
  A: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.



  Q: Can you produce a product in a color of my choosing?

  A: Yes, we can manufacture products in different colors, however there may be minimum quantities or surcharges applicable.



  Q: Do you provide an installation service?

  A: No, we do not install products, but they are very straightforward to install, please kindly contact us if unsure.



  Q: When can I receive your quotation?

  A: Within 12 hours



  Q: How can I pay you?

  A: Many convenient methods for choose: Paypal, T/T, L/C.
